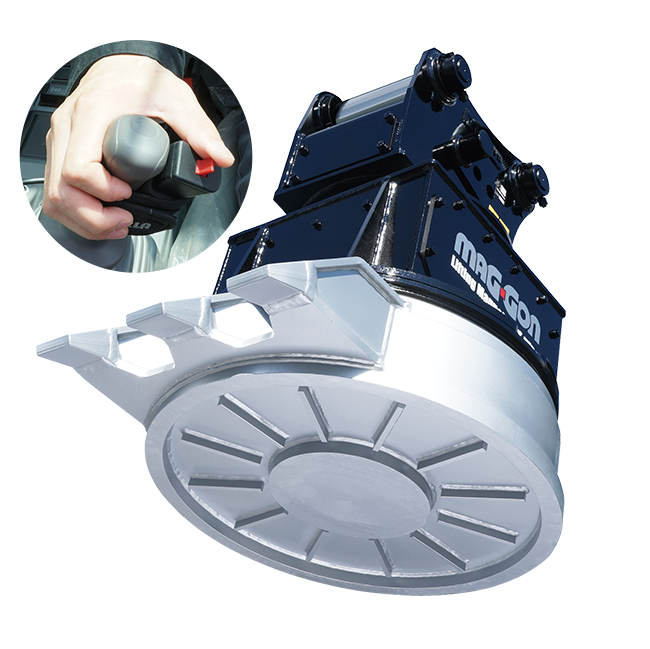

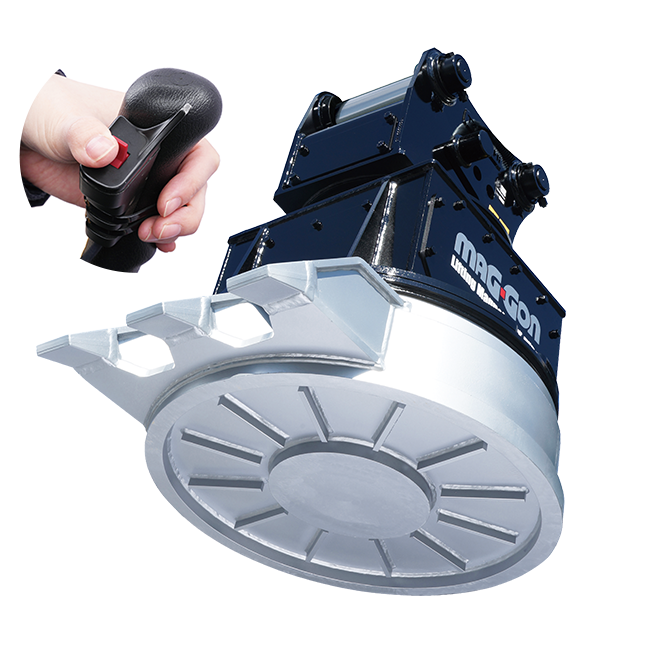

Rotational Lifting Magnet Rotational MAG-GON DYNA

Rotating hydraulic power magnet
without electric wiring and hydraulic piping

New model of MAG-GON that can use powerful magnet without electric wiring.
In the "Dyna series" that can be turned with only hydraulic piping system, magnet can be attracted as well as rotating.

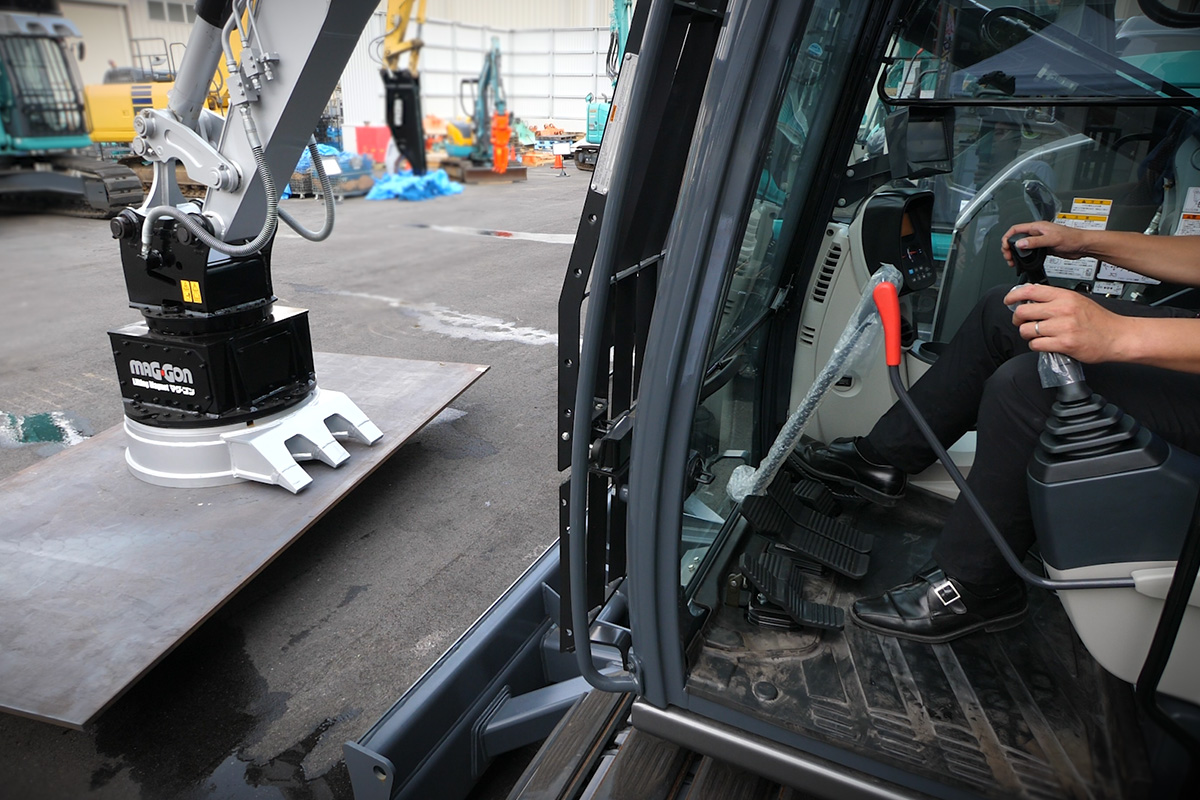

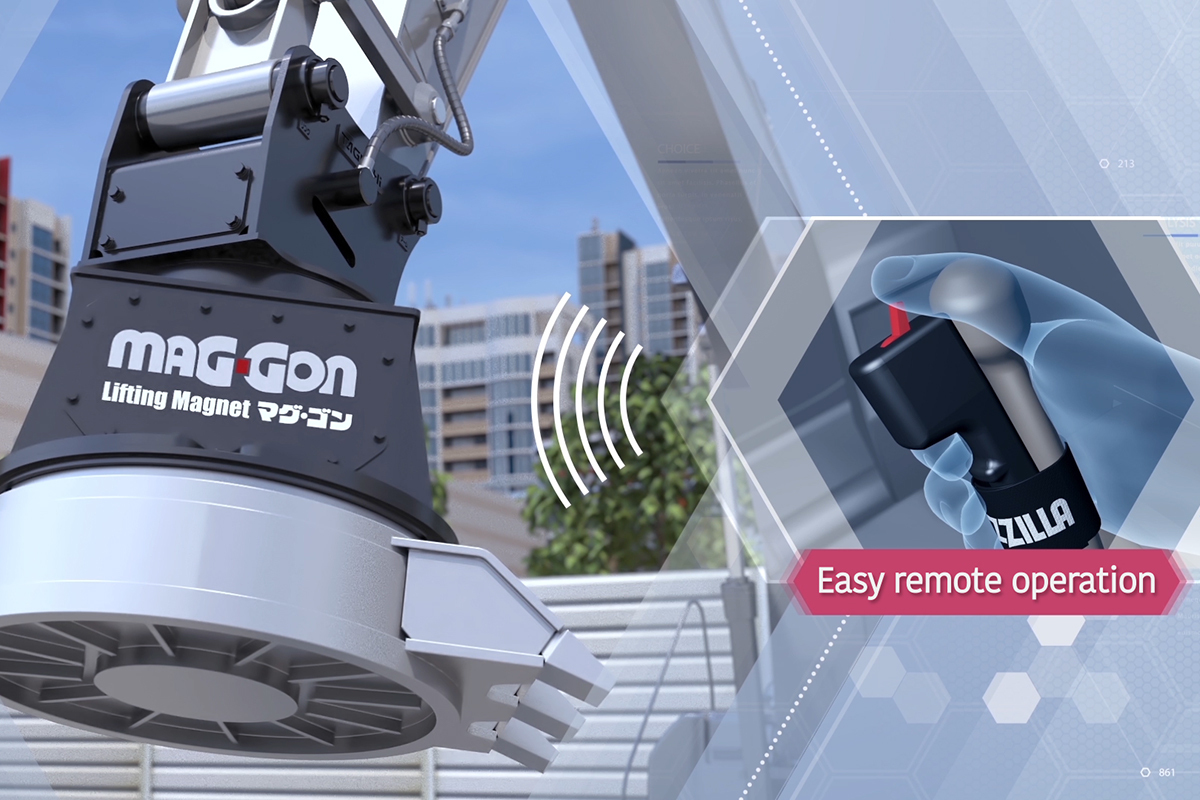

Can be rotated by remote control

Just insert the remote control into the excavator's cigar socket. Easy setup allows rotation by remote control operation. By operating the remote control unit attached to the cabin, it is possible to turn to the left, turn to the right and rotation. Reinforcing bar collection work at the demolition job site and loading/unloading work at the scrap processing site are dramatically improved.

2018 Good Design Award
Winning Product

MAG-GON has been awarded the 2018 Good Design Award sponsored by Japan Institute of Design Promotion (double award with GUZZILLA DS Cutter). The compact design and the system that generates electricity inside the body have been highly evaluated.

SPEC

Model Name	Class of excavator[ton]	Operating pressure[MPa]	Required flow rate[L/min]	Height A[mm]	Length B[mm]	Claws width C[mm]	Magnet duty cycle[%ED]	Magnet power consumption[kW]	Magnet diameter D[mm]	Mass[kg]	Approximate lifting capacity[kg]
GM-122SD	12 - 14	20.6 or more	27 or more	1060	1110	620	60 (Repeating cycle of power on 6 minutes and pause 4 minutes)	6.2	φ900	1210	Pig iron:500kg, Steel plate cut layer:300kg, Chips:200kg
GM-202SD	20 - 22	27.4 or more	54 or more	1160	1370	750	60 (Repeating cycle of power on 6 minutes and pause 4 minutes)	9.3	φ1100	2020	Pig iron:900kg, Steel plate cut layer:500kg, Chips:300kg

・A breaker piping or single two-way hydraulic piping is required (You cannot use with the excavator with back pressure exceeds 4.9 MPa) .
・Please consult your Taguchi dealer about the hydraulic excavator class to attach the product.
・The attachment cannot be installed on a hydraulic excavator of a different class.
