Rotational Lifting Magnet Rotational MAG-GON

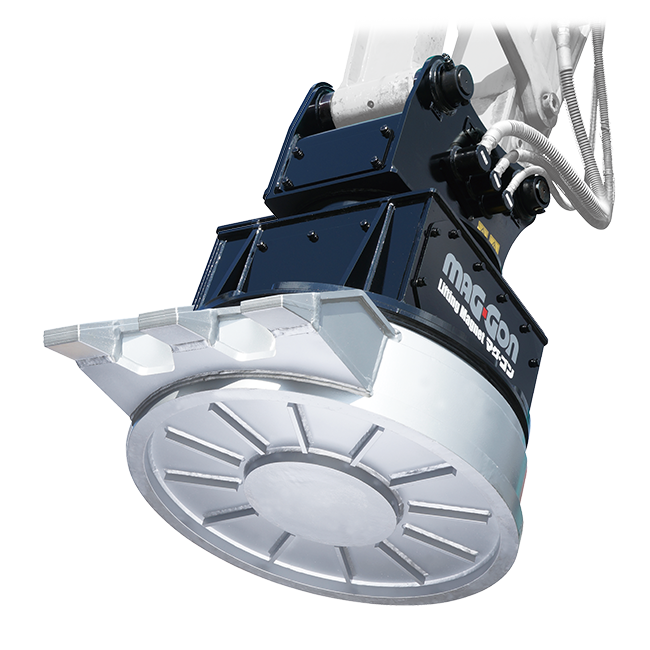

Rotating Hydraulic Power Magnet Without Electrical Wiring
MAG-GON is a lifting magnet that does not require electrical wiring and rotating type is also available.
It increases work efficiency in various job site.
No electrical wiring required in excavator
High Efficiency work with 360° Rotating Action
Whereas conventional types require modifications such as electrical wiring to excavator body side, MAG-GON does not require any customization.No additional batteries or generators are required.
Since it is possible 360° rotating action, you can do a lifting work safely and easily in various job sites.
Good Design Award 2018
Winning Model
At Good Design Award 2018 sponsored by Japan Institute of Design Promotion, MAG-GON won the "Good Design Award".
SPEC
Model Name | Class of excavator[ton] | Operating pressure[MPa] | Required flow rate[L/min] | Height A[mm] | Length B[mm] | Claws width C[mm] | Magnet duty cycle[%ED] | Magnet power consumption[kW] | Magnet diameter D[mm] | Mass[kg] | Approximate lifting capacity[kg] |
---|---|---|---|---|---|---|---|---|---|---|---|
GM-62S | 6 - 8 | 20.6 or more | 19 or more | 900 | 890 | 500 | 60 (Repeating cycle of power on 6 minutes and pause 4 minutes) | 3.3 | φ700 | 750 | Pig iron:350kg, Steel plate cut layer:200kg, Chips:100kg |
GM-122S | 12 - 14 | 20.6 or more | 27 or more | 1060 | 1110 | 620 | 60 (Repeating cycle of power on 6 minutes and pause 4 minutes) | 6.2 | φ900 | 1250 | Pig iron:500kg, Steel plate cut layer:300kg, Chips:200kg |
GM-202S | 20 - 22 | 20.6 or more | 54 or more | 1160 | 1370 | 750 | 60 (Repeating cycle of power on 6 minutes and pause 4 minutes) | 9.3 | φ1100 | 2000 | Pig iron:900kg, Steel plate cut layer:500kg, Chips:300kg |
・Double two-way hydraulic pipes are required.
・A drain piping is required when the back pressure of the rotation line exceeds 2 MPa.
・However, you cannot use with an excavator with the back pressure of power generating line exceeds 4.9 MPa.
・Please consult your Taguchi dealer about the hydraulic excavator class to attach the product.
