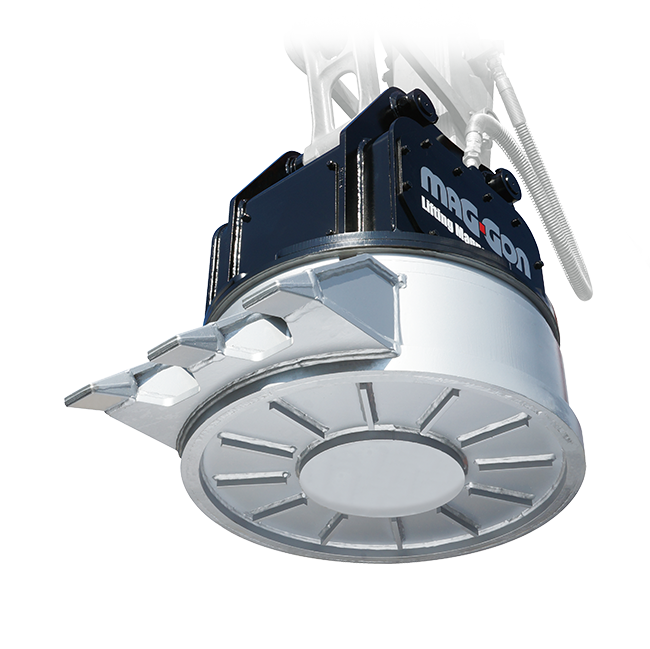

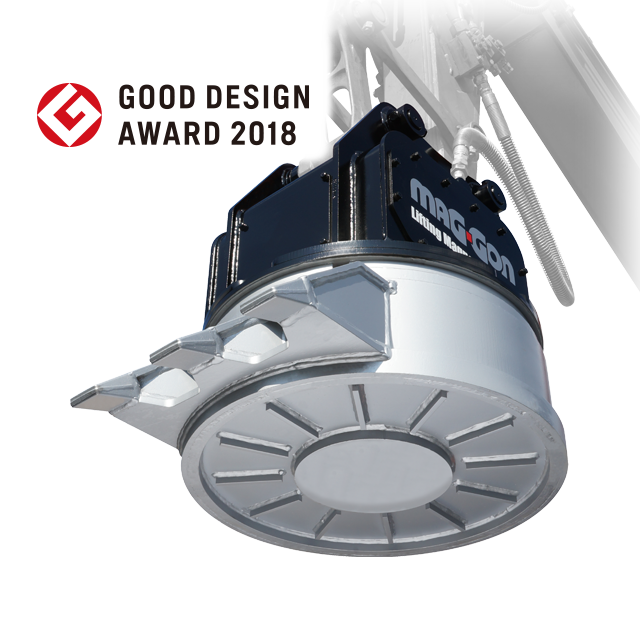

MAG-GON is a lifting magnet that does not require electrical wiring.
MAG-GON dramatically increases work efficiency in various jog site.
![](https://www.taguchi-industrial.com/wp-content/uploads/2020/06/GM_topics_01.jpg)
No electrical wiring required in excavator
Whereas conventional types require modifications such as electrical wiring to excavator body side, MAG-GON does not require any customization.MAG-GON can work immediately after installation, regardless of type of hydraulic excavator. No additional batteries or generators are required.
![](https://www.taguchi-industrial.com/wp-content/uploads/2020/06/GM_topics_02.jpg)
Easy attraction and release of magnet
Only using pedals in excavator, you can easily operate MAG-GON and it is possible to attract and release the object.
SPEC
Model Name | Class of excavator[ton] | Operating pressure[MPa] | Required flow rate[L/min] | Height A[mm] | Length B[mm] | Claw width C[mm] | Magnet duty cycle[%ED] | Magnet power consumption[kW] | Magnet diameter D[mm] | Mass[kg] | Approximate lifting capacity[kg] |
---|---|---|---|---|---|---|---|---|---|---|---|
![]() GM-42 | 4 - 5 | 14.7 or more | 19 or more | 630 | 695 | 360 | 60 (Repeating cycle of power on 6 minutes and pause 4 minutes) | 1.0 | φ500 | 380 | Pig iron:120kg, Steel plate cut layer:90kg, Chips:25kg |
![]() GM-62 | 6 - 8 | 17.6 or more | 19 or more | 770 | 900 | 500 | 60 (Repeating cycle of power on 6 minutes and pause 4 minutes) | 3.3 | φ700 | 670 | Pig iron:350kg, Steel plate cut layer:200kg, Chips:100kg |
![]() GM-122 | 12 - 14 | 20.6 or more | 27 or more | 795 | 1110 | 620 | 60 (Repeating cycle of power on 6 minutes and pause 4 minutes) | 6.2 | φ900 | 1140 | Pig iron:500kg, Steel plate cut layer:300kg, Chips:200kg |
![]() GM-202 | 20 - 22 | 20.6 or more | 54 or more | 910 | 1370 | 750 | 60 (Repeating cycle of power on 6 minutes and pause 4 minutes) | 9.3 | φ1100 | 1770 | Pig iron:900kg, Steel plate cut layer:500kg, Chips:300kg |
・A breaker piping or single two-way hydraulic piping is required. (You cannot use with the excavator with back pressure exceeds 4.9 MPa)
・The attachment cannot be installed on a hydraulic excavator of a different class.
・Please consult your Taguchi dealer about the hydraulic excavator class to attach the product.
