[Replaceable Tooth Type] Hydraulic Pulverizer MC Pulverizer SP Series
Introducing a Pulverizer with Easy Maintenance!

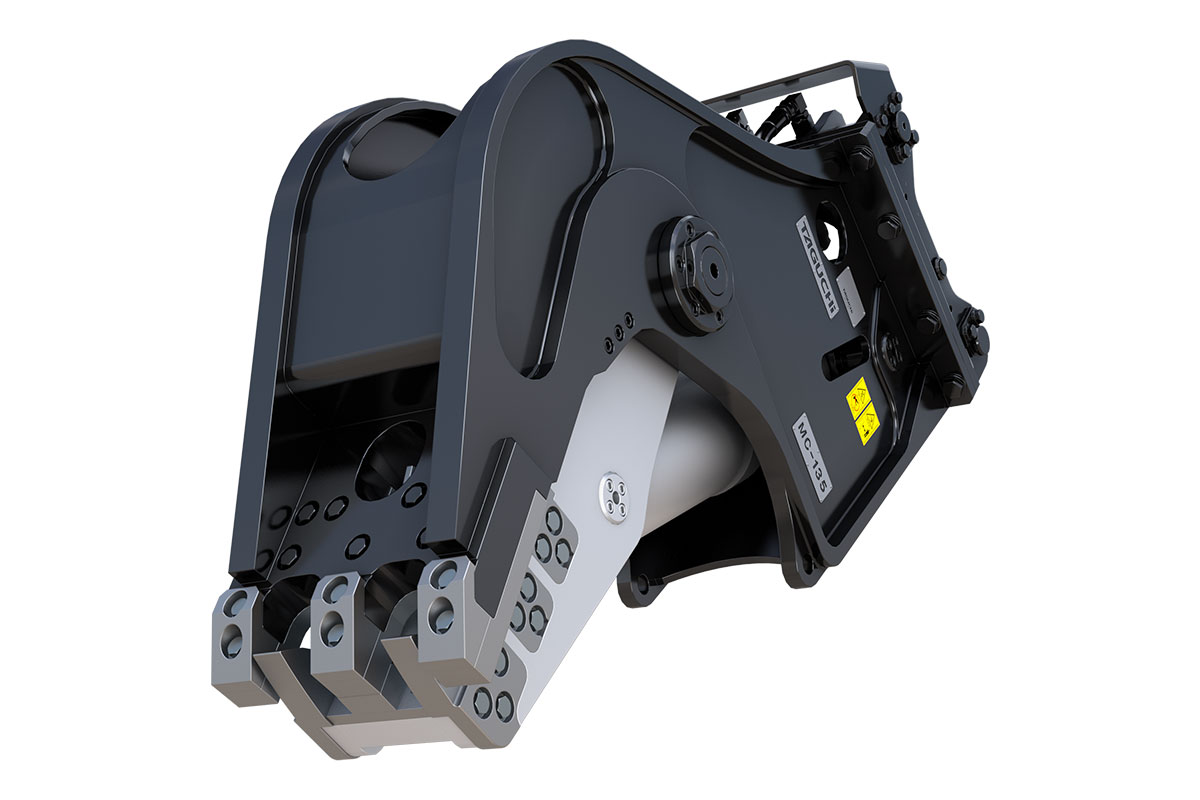

Quick and easy replacement on the site! Introducing the MC Pulverizer equipped with replaceable "SP Teeth".
This groundbreaking series makes a significant contribution to reducing maintenance costs and on-site labor requirements
Significantly contributing to streamlining on-site labor requirements!
A new model equipped with replaceable "SP Teeth".
Introducing the MC Pulverizer featuring bolt-on, replaceable "SP Teeth"!

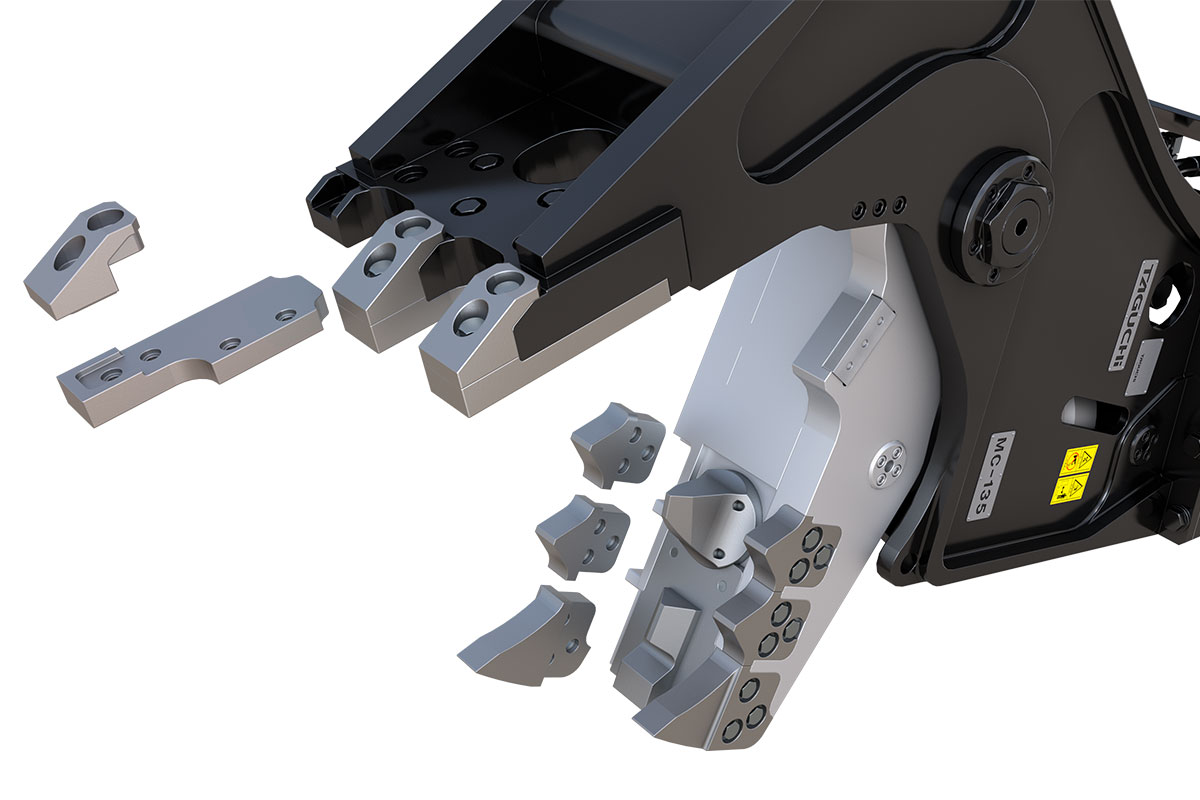

Made from highly wear-resistant material, the replaceable SP Teeth deliver twice the service life of conventional welded teeth (compared with our previous models).
The bolt-on design allows worn teeth to be replaced quickly and easily right at the jobsite, eliminating the need for time-consuming hardfacing, welding repairs, or other maintenance. This helps reduce downtime, lower maintenance costs, and support labor-saving operations.
"Lightweight and Powerful
Pulverizing work with low-vibration and low-noise"
Our in-house original cylinder has realized overwhelming weight reduction. An original design that stores the rod inside the main unit enables work at maximum output all the time without worrying about damage to the rod part.
Easy Maintenance
Special Steel Blade
The special steel blade as standard feature can be used on 4 sides reversible. It is possible to cut the rebar that appears during pulverizing work.
The tooth is also made of special steel and it is easy to replace and repair.
SPEC

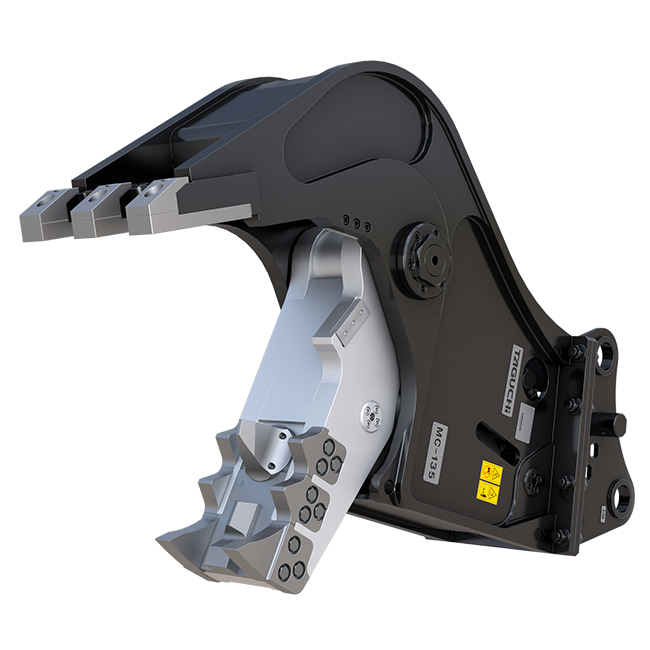

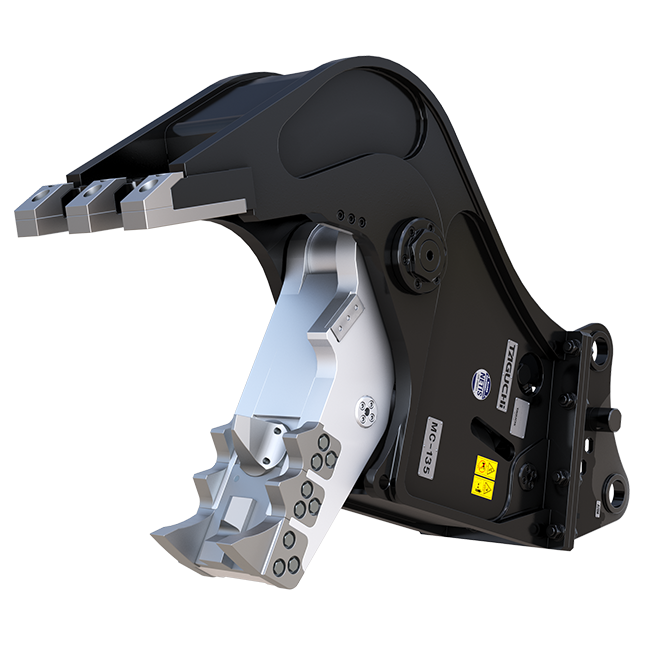

MC Pulverizer SP series specifications
| Model name | Class of excavator[ton] | Operating pressure[MPa] | Max. operating pressure[MPa] | Length A[mm] | Max. jaw opening B[mm] | Cutting blade length C[mm] | Crushing force at tip D[kN] | Crushing force at center E[kN] | Mass[kg] |
|---|---|---|---|---|---|---|---|---|---|
 MC-135-SP-GFT | 12 - 14 | 31.4 | 34.3 | 1620 | 745 | 120 | 551 | 843 | 1140 |
 MC-202-SP-GFT | 20 - 22 | 31.4 | 34.3 | 1920 | 845 | 160 | 569 | 883 | 1730 |
MC-212-SP-GFT | 20 - 22 | 31.4 | 34.3 | 1980 | 875 | 160 | 735 | 1120 | 1870 |
･ Single two-way hydraulic piping is required.
･ We recommend reinforcing the stick of a hydraulic excavator that has this product installed.
･ The attachment cannot be installed on a hydraulic excavator of a different class.
