[Replaceable Tooth Type] Hydraulic Magnet Pulverizer MC Pulverizer with MAG-GON SP Series

Replaceable Teeth on the Site
Pulverizer MAG-GON with Easy Maintenance

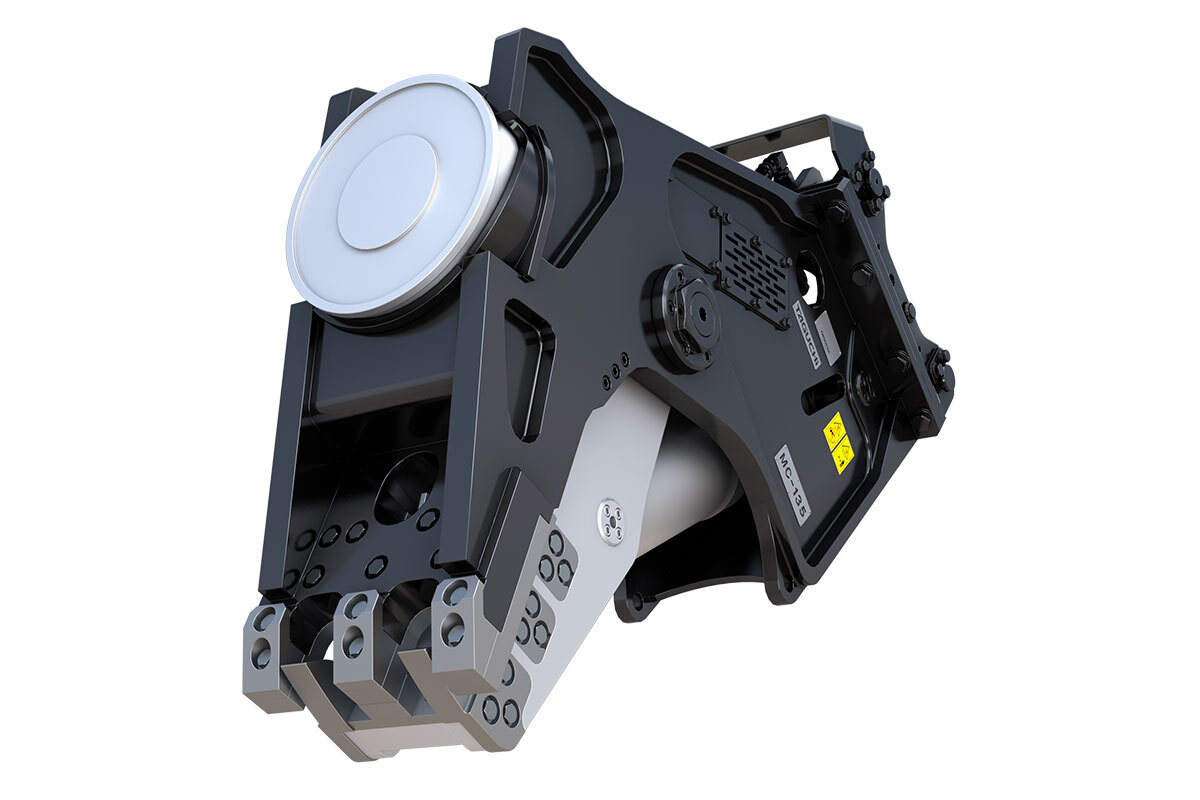

Quick and easy replacement on the site! Introducing the MC Pulverizer with MAG-GON equipped with replaceable "SP Teeth"!
This groundbreaking series makes a significant contribution to reducing maintenance costs and streamlining on-site labor requirements.

Significantly reducing maintenance costs and supporting Labor-Saving Operations!
Introducing the new model featuring replaceable "SP Teeth".

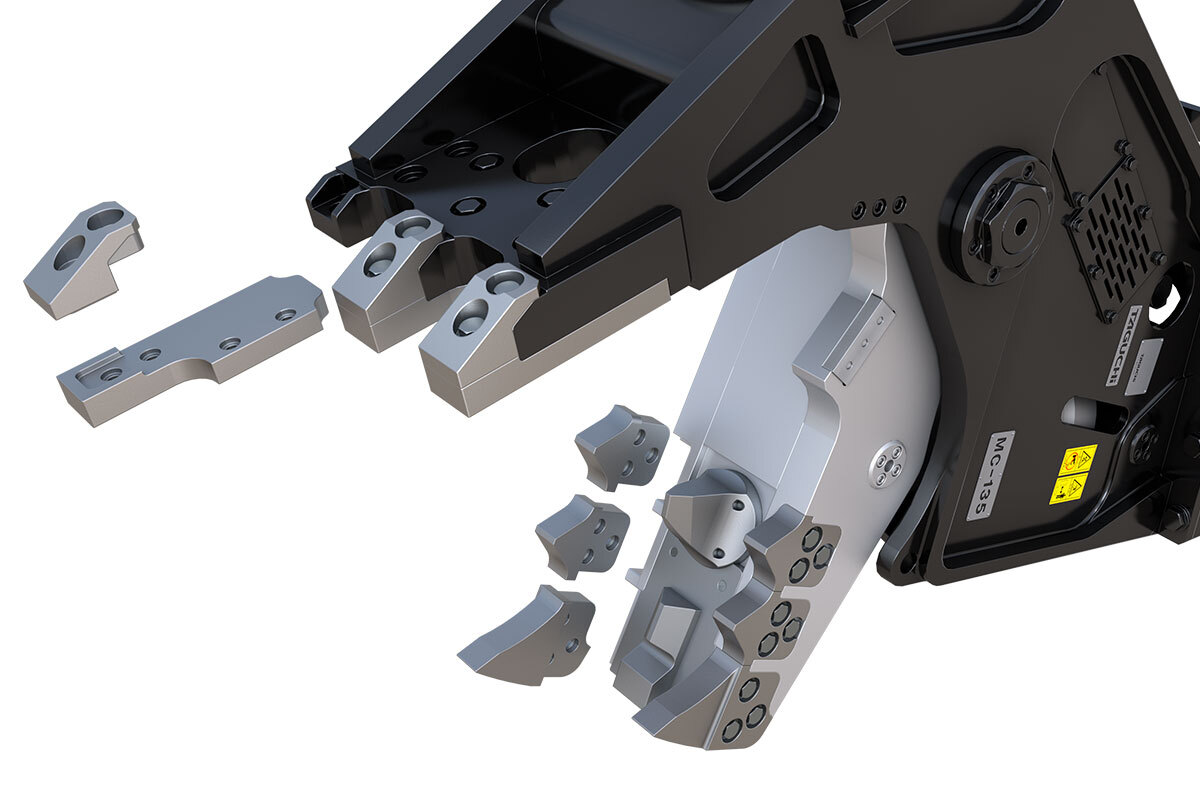

Introducing the MC Pulverizer with MAG-GON featuring bolt-on, replaceable "SP Teeth"!
Made from highly wear-resistant material, the replaceable SP Teeth deliver twice the service life of conventional welded teeth (compared with our previous models).
The bolt-on design allows worn teeth to be replaced quickly and easily right at the jobsite, eliminating the need for time-consuming hardfacing, welding repairs, or other maintenance. This helps reduce downtime, lower maintenance costs, and support labor-saving operations.

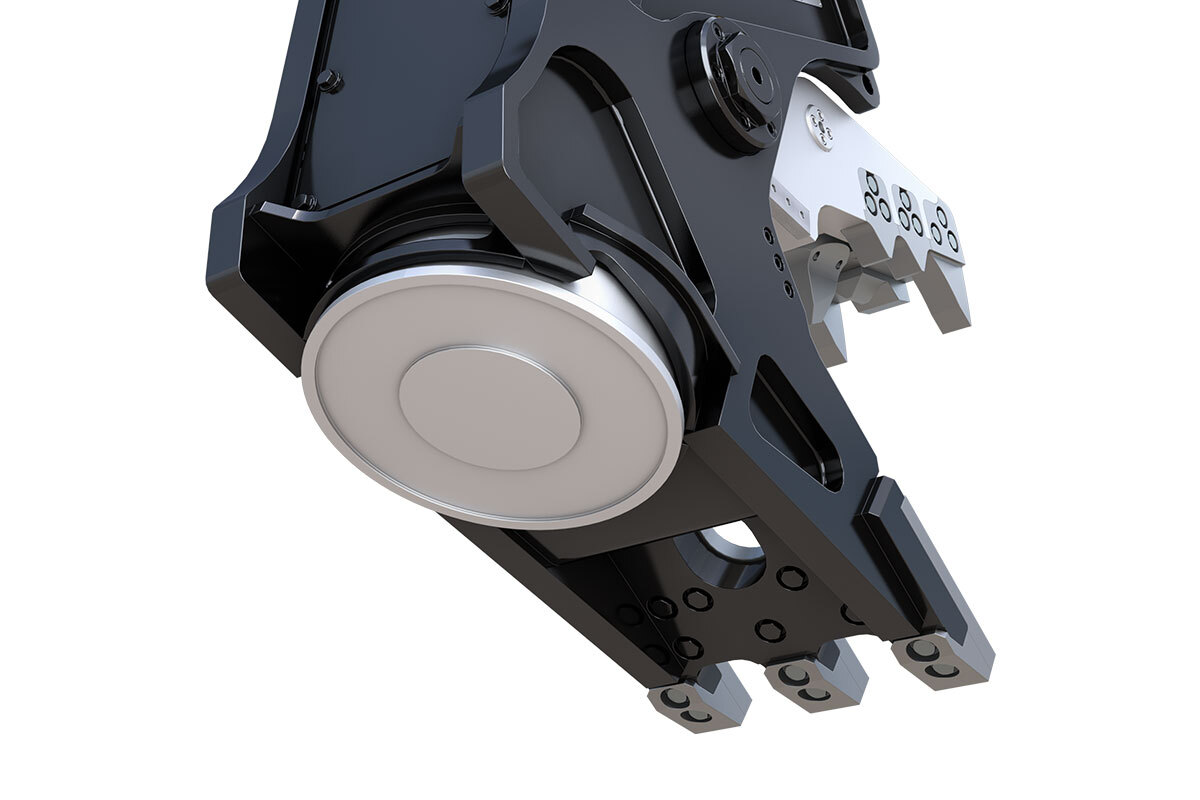

No Customization and Additional Battery/Generator required

Whereas conventional types require modifications such as electrical wiring to excavator body side, MAG-GON does not require any customization.
MAG-GON can work immediately after installation, regardless of type of hydraulic excavator. No additional batteries or generators are required.

Big cylinders and Speed valve

MC Series with big cylinders and Speed valve realizes pulverizing work with low-vibration and low-noise.TAGUCHI's unique design to place hyd. cylinder inside the main body enable to work without worrying about damage to the rod.Speed valve (jaw closing) is standard in all models and it bring improving work efficiency.

Easy Maintenance
Special Steel Blade

The special steel cutting blades with excellent toughness, which come equipped as standard, can be used on four sides, and can cut reinforcing bars during pulverization. Special forged steel is employed for the crushing teeth. Another notable feature is their excellent maintainability, with easy replacement and repair.

SPEC

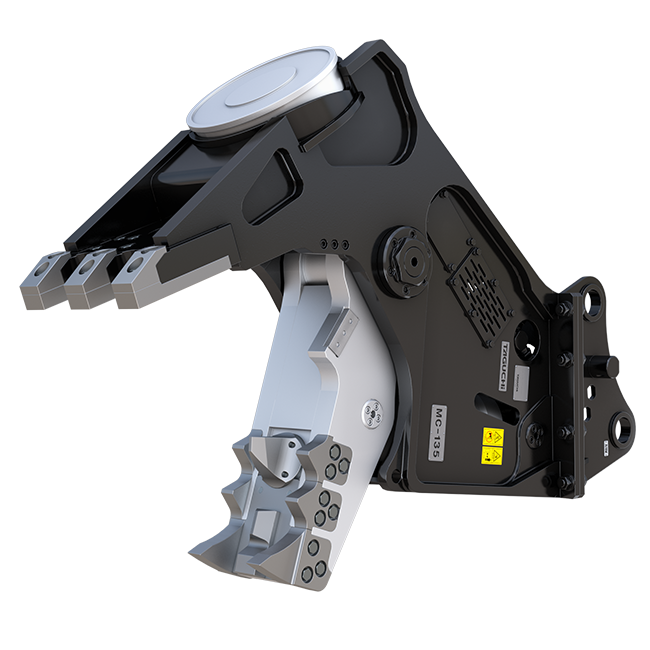

MC Pulverizer with MAG-GON SP series specifications

Model name	Class of excavator[ton]	Operating pressure[MPa]	Max. operating pressure[MPa]	Length A[mm]	Max. jaw opening B[mm]	Cutting blade length C[mm]	Crushing force at tip D[kN]	Crushing force at center E[kN]	Magnet use rating[%ED]	Magnet power consumption[kW]	Magnet diameter F[mm]	Mass[kg]
MC-135FM4A-SP-GFT	12 - 14	31.4	34.3	1570	750	120	551	843	60 (Repeating cycle of power on 6 minutes and pause 4 minutes)	0.5	φ400	1260

･ Single two-way hydraulic piping is required.
･ We recommend reinforcing the stick of a hydraulic excavator that has this product installed.
･ The attachment cannot be installed on a hydraulic excavator of a different class.
