Hydraulic Mower Grass Cutter

Cut and Crush weeds and Small trees Powerfully and Speedy

Grass Cutter cuts and crushes weeds and small trees easily with tilt action and strong hammer knives.

Tilt action brings various cutting angles and
Makes cutting work easier

You can do cutting work even on slopes.Grass Cutter can cut not only weeds and small trees but also bamboo with heavy duty frame.

Thick and long hammer knives

Grass Cutter has thick and long hammer knives and it rotates at high speed.Hammer knives are 2 sides reversible.Grass Cutter is equipped with flow control valve to match various excavators, and it enables stable operation.

The "NETIS" registered products can safely and quickly cut everything from weeds to bamboo groves and bushes.

Grass Cutter is registered with NETIS (New Technology Information System) administered by the Ministry of Land, Infrastructure, Transport and Tourism of Japan.
NETIS registration number: CG-240010-A

Capable of cutting weeds
to the edges of obstacles

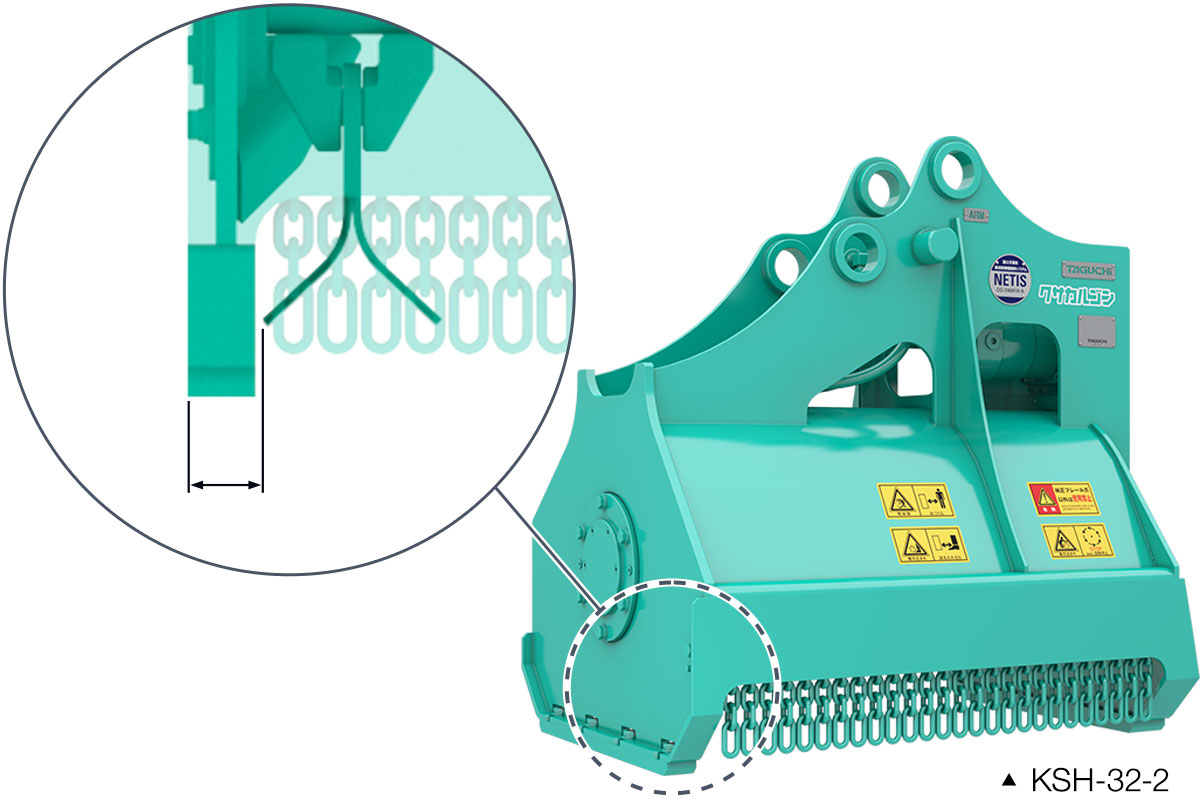

The KSH series features flail blades positioned to the very last inch of the edge of the brackets. This feature allows it to clear small trees around obstacles and along walls.

The mount adapter is now the GV type (the same type for our Graspers and Crushers), further enhancing its usability.

SPEC

Grass Cutter specifications

Model name	Class of excavator[ton]	Total length A[mm]	Total width B[mm]	Total height C[mm]	Cutting width D[mm]	Cutting height E[mm]	Number of blades	Knife circumferential speed[m/s]	Mass[kg]
KS-17	1.2 - 2	590	575	675	450	30	12	59	130
KSH-32-2	2 - 4	885	655	870	745	45	18	60	230
KSH-37-2	3 - 5	1000	660	940	830	45	18	62	300
KS-62	6 - 8	1380	830	1100	1150	50	24	63	540
KS-122	12 - 14	2000	1020	1280	1690	50	36	79	1130
KS-202	20 - 22	2420	1030	1450	2090	50	48	79	1760

･ Breaker piping or single two-way hydraulic piping is required.
･ A hydraulic excavator with a back pressure that exceeds 3.4 MPa cannot be used.
･ The attachment cannot be installed on a hydraulic excavator of a different class.
