Twin Cylinder Rebar / Steel Frame Cutter & concrete crusher DF Crushing Cutter
Mini Series for Crushing and Cutting Work
This crushing cutter can crush various types of concrete and enables cutting work with the special steel cutting blade.

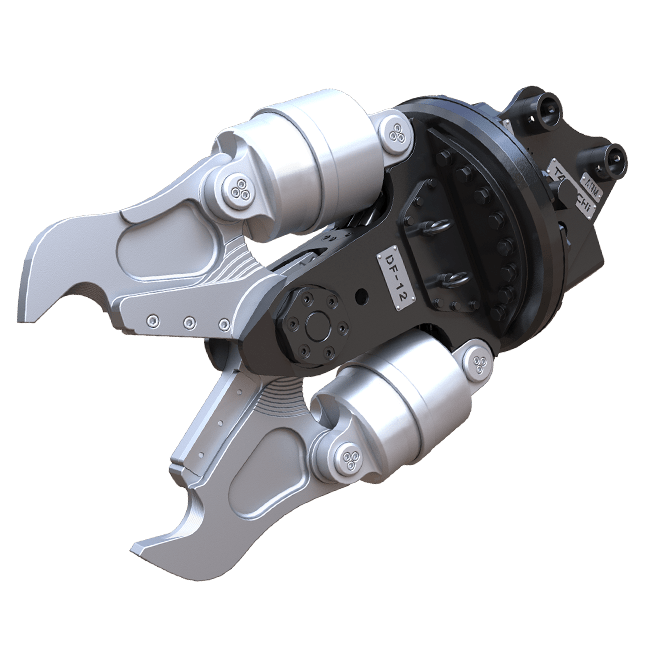

The original twin cylinders can powerfully crush, cut, sort, and collect concrete. With a simple design structure without sync links, DF-22 is available in two types of rotation.
Lightweight and Wide opening Range
Small size but Powerful Crushing Force
The original designed twin cylinders bring strong crushing force. DF series Crushing Cutter with top-class wide opening range enables you to do the same job with your smaller excavator in a narrow job site.The blade is made of special steel material and designed only for DF series. It can be used on 2 sides reversible.
Although it is small size class, DF series is developed by the comprehensive technology of TAGUCHI.
SPEC
DF Crushing Cutter S/A type specifications
| Model name | Rotation type | Class of excavator[ton] | Operating pressure[MPa] | Max. operating pressure[MPa] | Length A[mm] | Max. jaw opening B[mm] | Cutting blade length C[mm] | Crushing force at tip D[kN] | Center cutting force E[kN] | Mass[kg] |
|---|---|---|---|---|---|---|---|---|---|---|
 DF-09 | A | 0.7 - 1 | 17.6 | 20.6 | 700 | 210 | 100 | 98 | 148 | 90 |
 DF-12 | A | 1 - 1.5 | 17.6 | 20.6 | 790 | 265 | 125 | 157 | 230 | 120 |
 DF-22 | S | 2 - 2.5 | 20.6 | 20.6 | 835 | 285 | 140 | 186 | 280 | 150 |
| A |
･ Double two-way hydraulic piping is required for S type.
･ Single two-way hydraulic piping is required for A type. (Rotation may not be possible when the operating pressure is low.)
･ We recommend reinforcing the stick of a hydraulic excavator that has this product installed.
･ The attachment cannot be installed on a hydraulic excavator of a different class.
DF Crushing Cutter SC type specifications
| Model name | Class of excavator[ton] | Operating pressure[MPa] | Max. operating pressure[MPa] | Length A[mm] | Max. jaw opening B[mm] | Cutting blade length C[mm] | Crushing force at tip D[kN] | Center cutting force E[kN] | cigarette socket voltage*[V] |
Mass[kg] |
|---|---|---|---|---|---|---|---|---|---|---|
DF-22SC | 2 - 2.5 | 20.6 | 20.6 | 845 | 285 | 140 | 186 | 280 | DC12 | 150 |
･ Single two-way hydraulic piping is required.
･ If the cigarette socket voltage （＊for control switch ）of the hydraulic excavator used is different from the voltage indicated above, please consult our sales representative.
･ We recommend reinforcing the stick of a hydraulic excavator that has this product installed.
･ The attachment cannot be installed on a hydraulic excavator of a different class.
