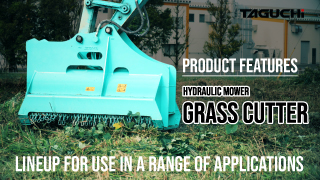

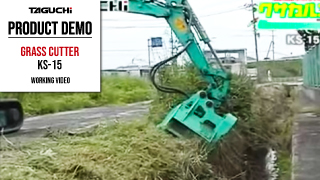

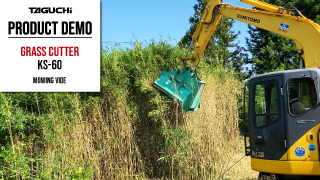

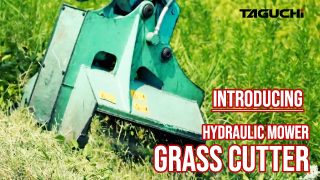

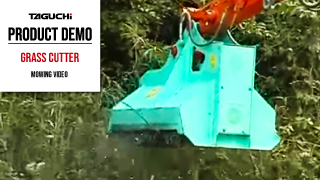

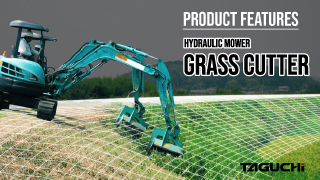

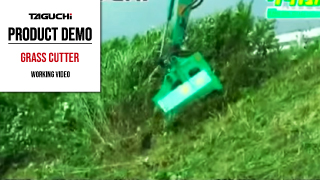

Hydraulic Mower Grass Cutter

Cut and Crush weeds and Small trees Powerfully and Speedy

Grass Cutter cuts and crushes weeds and small trees easily with tilt action and strong hammer knives.

Tilt action brings various cutting angles and
Makes cutting work easier

You can do cutting work even on slopes.Grass Cutter can cut not only weeds and small trees but also bamboo with heavy duty frame.

Thick and long hammer knives

Grass Cutter has thick and long hammer knives and it rotates at high speed.Hammer knives are 2 sides reversible.Grass Cutter is equipped with flow control valve to match various excavators, and it enables stable operation.

SPEC

Model Name	Class of excavator[ton]	Length A[mm]	Width B[mm]	Height C[mm]	Cutting width D[mm]	Cutting height E[mm]	Number of blades	Peripheral speed[m/s]	Mass[kg]
KS-17	1.2 - 2	590	575	675	450	30	12	59	130
KS-27	2 - 4	925	655	870	765	45	18	60	230
KS-32	3 - 5	1040	660	905	850	50	18	62	300
KS-62	6 - 8	1380	830	1100	1150	50	24	63	540
KS-122	12 - 14	2000	1020	1280	1690	50	36	79	1140
KS-202	20 - 22	2420	1030	1450	2090	50	48	79	1760

・A breaker piping or single two-way hydraulic piping is required.
・You cannot use with an excavator with the back pressure exceeds 3.4 MPa.
・The attachment cannot be installed on a hydraulic excavator of a different class.
