TH series is good for road repair work and assisting work with large cutting machines.
Realize speedy and powerful cutting work at the job site of quarry, asphalt & concrete cutting and hard soil excavation.
Realize working with low-noise using cutting bits
Realize powerful excavation and cutting work with TAGUCHI's unique rotation mechanism.Using cutting bits enables to work with low impact and low noise compared to hydraulic breakers.

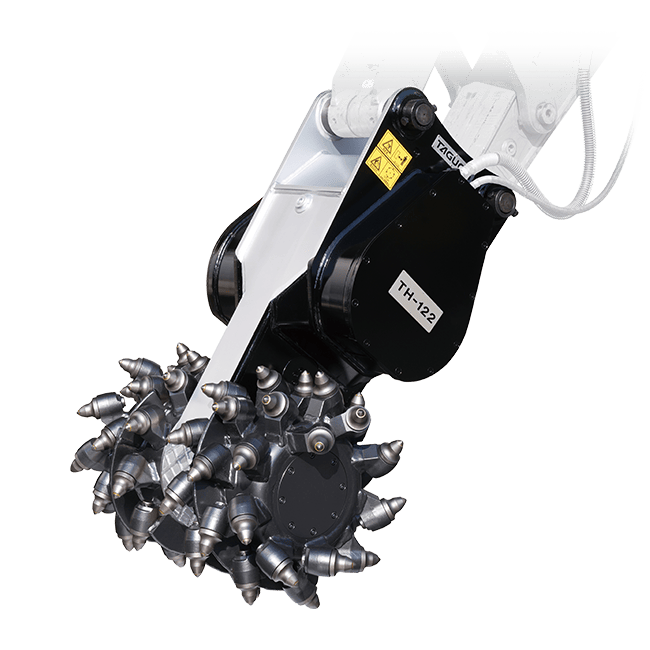

Cutting with 76 bits on the dual drum
Cutting with 76 bits on the dual drum.By rotating each special designed bit individually, uneven wear of the bit does not occur and it brings reduction of maintenance cost.
SPEC
| Model Name | Class of excavator[ton] | Max. operating pressure[MPa] | operating pressure[MPa] |
Length A[mm] | Drum width B[mm] | Drum outside diameter C[mm] | RPM[rpm] | Max. output torque[N-m] | Cutting force[kN] | Mass[kg] |
|---|---|---|---|---|---|---|---|---|---|---|
 TH-62 | 6 - 8 | 27.4 | - | 950 | 925 | φ505 | 81 (at 120L/min) | 5840 | 23 | 750 |
 TH-122 | 12 - 14 | 31.4 | - | 1070 | 970 | φ605 | 110 (at 200L/min) | 7460 | 25 | 1280 |
 TH-202 | 20 - 22 | - | 27.4* | 1240 | 1020 | φ655 | 164 (at 400L/min) | 9620 | 29 | 1790 |
・Note for Max Operating Pressure for TH-202 : Relief Valve installed, Set Pressure is 27.4 Mpa.
・A breaker piping or single two-way hydraulic piping is required.
・A drain piping is required for the excavator when the back pressure of the rotation line exceeds 3.4 Mpa.
・The attachment cannot be installed on a hydraulic excavator of a different class.
