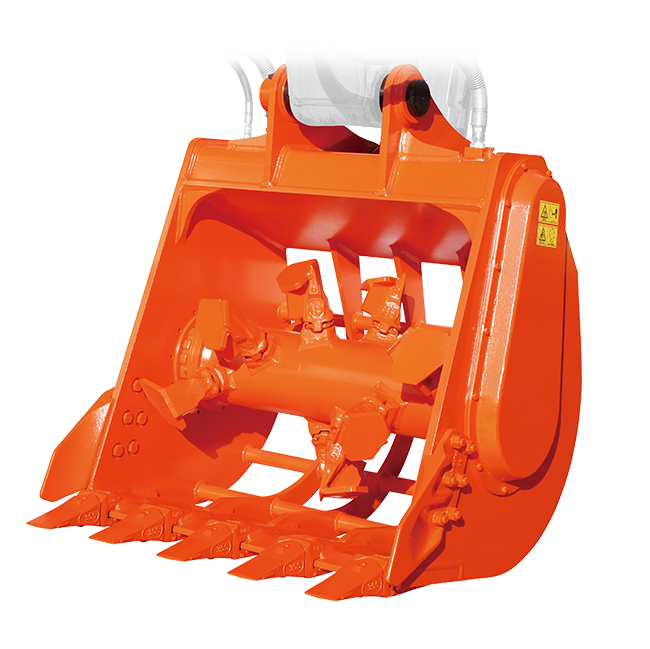

DM can perform mixing and excavating work efficiently by rotating a powerful rotor with a hydraulic motor.
It brings mixing od various soil conditioner quickly and equally.
Honeycomb shape hole type is also available
DM-62 has the honeycomb skeleton shape hole type as standard option. It is lighter than the other standard types and it is easy to maintain.
SPEC
| Model Name | Class of excavator[ton] | Max. operating pressure[MPa] | Bucket width A[mm] | Bucket length B[mm] | RPM[rpm] | Mass[kg] |
|---|---|---|---|---|---|---|
 DM-62 | 6 - 8 | 27.4 | 915 | 1050 | 100 | 570 |
 DM-122 | 12 - 14 | 34.3 | 1100 | 1230 | 129 | 830 |
 DM-202 | 20 - 22 | 34.3 | 1270 | 1450 | 129 | 1360 |
・Single two-way hydraulic piping is required.
・A drain piping is required for the excavator when the back pressure of the rotation line exceeds 3.4 Mpa.
・The attachment cannot be installed on a hydraulic excavator of a different class.
・Shape of the mesh differs depending on model.
